Manual Splitters

These splitters are designed to split irregular stones or boulders. They come in a closed or open-frame design and can work in quarries, as well as in stone processing factories. The manual design allows the operator to decide when and how to split the material. All manual machines are equipped with blades and with tool adjustment.

Models -

Automatic Splitters

The automatic splitters all have a closed H frame design and are generally used to automatically split regular or sawn blocks or strips. The automated lines are created for quality high volume production, thanks to the available combination of different handling systems and various forms of automation. An automatic system for loading and unloading or palletizing of the finished product can be added to the automatic splitting plants.

Models -

  • Kubo Series
  • P4 Series
  • PXA Series

The Manual Splitters

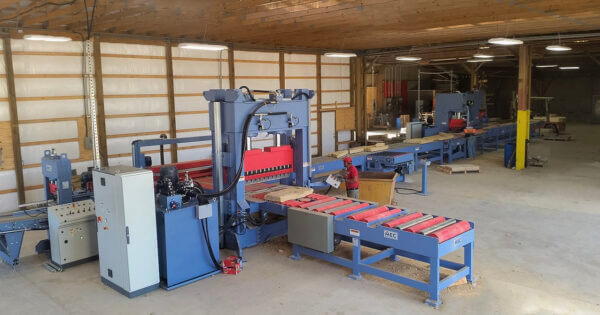

PX Series

It's simple to make the most money you need to make the best split, and that's where the PX SERIES comes in.

It allows for very high production of any kind of stone with any type of surface and up to 9'10" wide splits, learn more below.



Technical Specifications -



Splitting Widths -

From 2' to 9' 10"



Splitting Height -

From 2' to 3' 3"

Teeth -

Hardened Steel filled with Carbon Inserts

Learn More

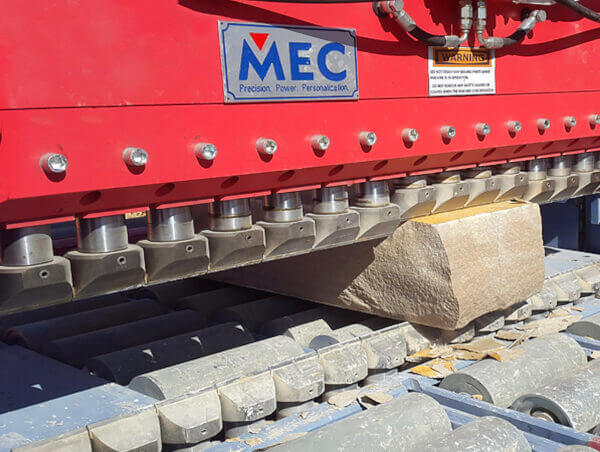

PH Series

Built like a tank, the H-frame PH SERIES ensures problem-free splitting of more kinds of stone and more surfaces than any other machine.



To do this, it utilizes hydraulically adjusting teeth that create even splitting power.



Technical Specifications -



Splitting Power -
300 - 600 Tons



Splitting Widths -

4’-11 ¼" - 9’-2 ¼”



Splitting Heights -

1 foot and 7 3/4"



Teeth -

Hardened Steel filled with Carbon Inserts

Learn More

C Series

The open design of the C series splitters allows for fast manual splitting, with the operator directly in front of the working table.

The C Series use mechanically adjustable teeth that adjust to the irregular stone surfaces. This adjustment allows for even distribution of splitting power and clean splits.

Use the C Series to make curbs, pavers, wall stone, and more.



Technical Specifications -



  • Splitting Heights - 8” - 1’ 10”
  • Splitting Power - 160 tons
  • Length of Splitting Blade - 6 ¼” - 2’ 3.5”
Learn More

Automatic Splitters

Kubo Series

The Kubo is designed for processing of billets or long regular pieces. These can be used to create thin veneers, stone for cladding, or cobblestones.The Kubo has very short cycle times that help create high levels of production.



Technical Specifications - 3 Models



•KUBO 200X100 24 TONS, with splitting width 8” & height 4”



•KUBO 400x200 36 TONS, with splitting passage 1’4” of width & 4” of height



•KUBO 600x300 50 TONS, with splitting width 1’11 ½” & 11 ¾” of height



Sizes of the Conveyors - vary depending on customer needs & Kubo model.

Learn More

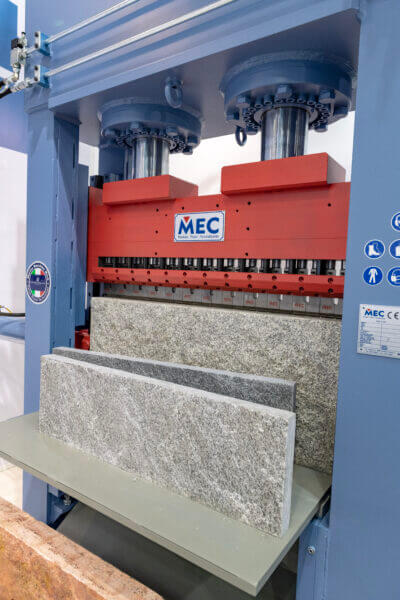

P4 Series

Built like a tank, the H-frame PH SERIES ensures problem-free splitting of more kinds of stone and more surfaces than any other machine.



To do this, it utilizes hydraulically adjusting teeth that create even splitting power.



Technical Specifications - 3 Models



Splitting Power -
300 - 600 Tons



Splitting Widths -
4’-11 ¼" - 9’-2 ¼”



Teeth -
Hardened Steel filled with Carbon Inserts

Learn More

pxa Series

Built like a tank, the H-frame PH SERIES ensures problem-free splitting of more kinds of stone and more surfaces than any other machine.



To do this, it utilizes hydraulically adjusting teeth that create even splitting power.



Technical Specifications - 3 Models



Splitting Power -
300 - 600 Tons



Splitting Widths -
4’-11 ¼" - 9’-2 ¼”



Splitting Height -
1 foot and 7 3/4"

Teeth -
Hardened Steel filled with Carbon Inserts

Learn More
